Power Bank Engineering Guides
Start with the system. Define cell/PACK, PCB power path, PD/PPS, cables, thermal and mechanical limits before tooling and mass production.

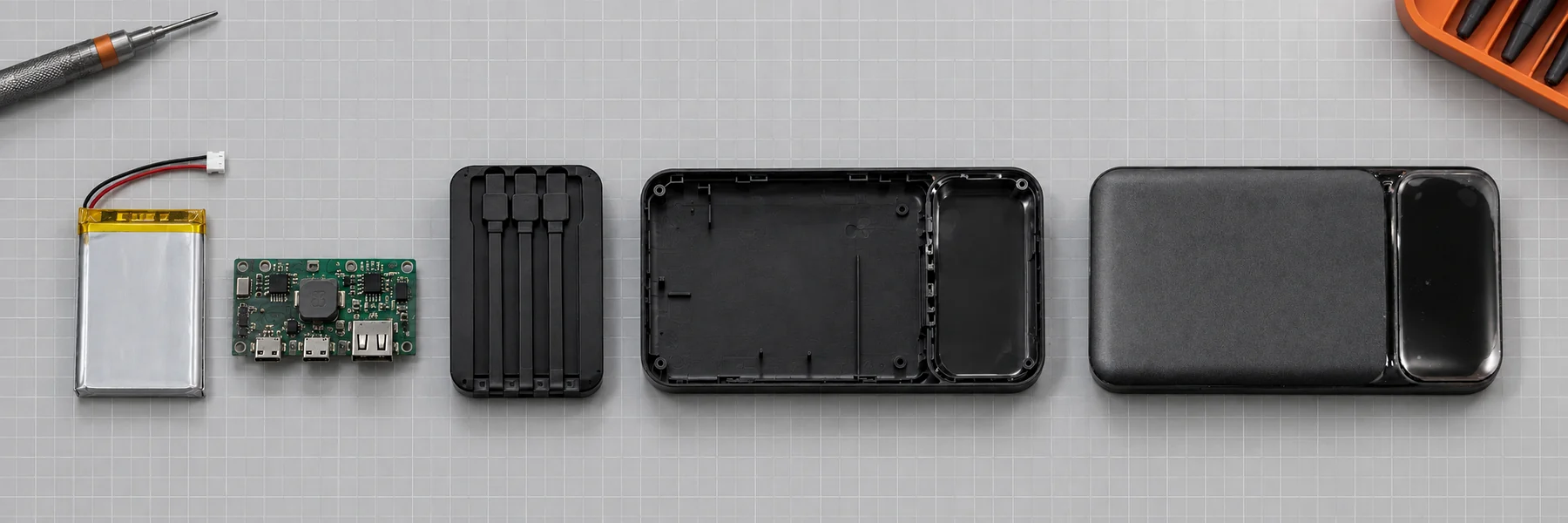

Power Bank Engineering Layers
Treat the product as one system.
Energy · current · protection
Conversion · switching · heat
Profiles · ports · cable loss

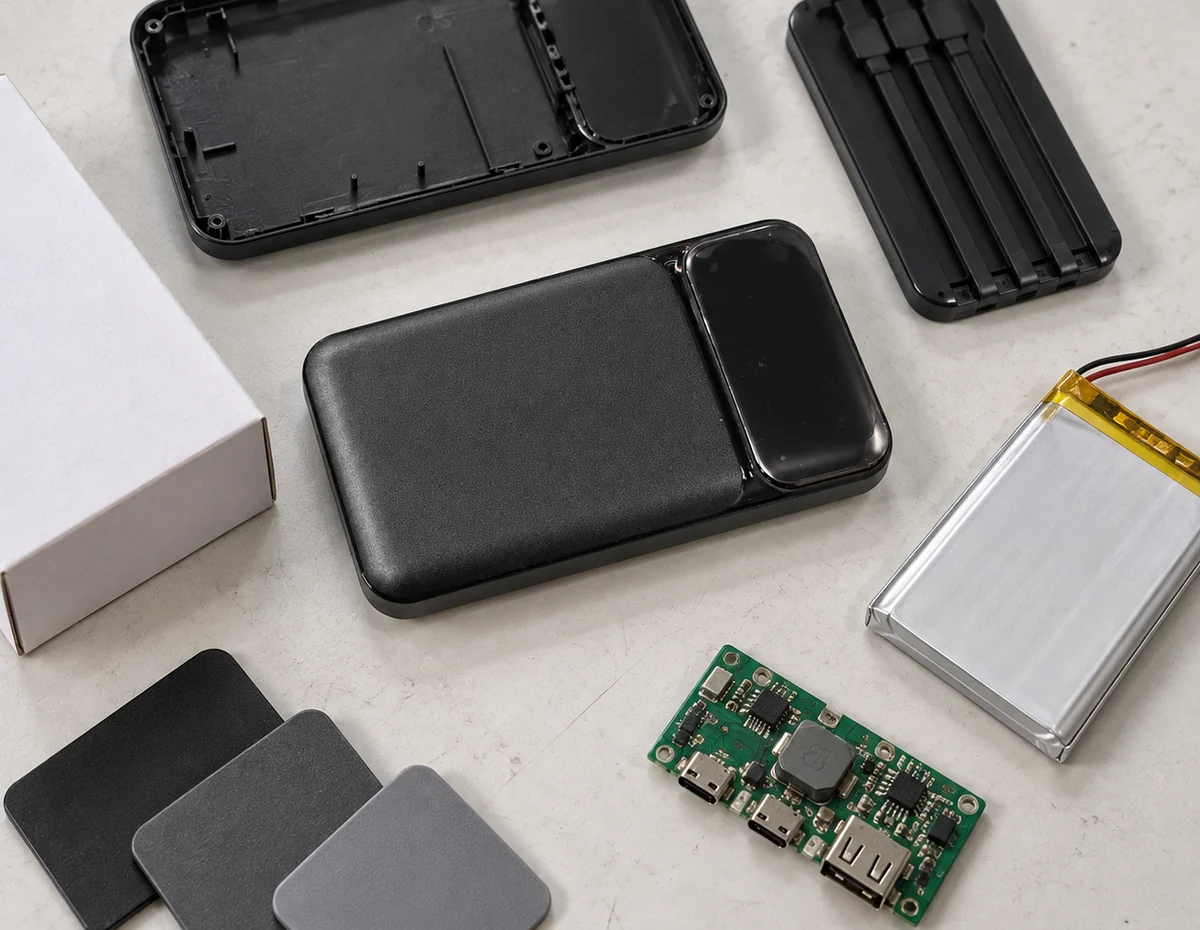

Stack-up · fit · heat path
Power Bank Engineering Workflow
Requirements → architecture → prototype → NPI.
Device · capacity · power
Cell/PACK · PCB · PD/PPS
Charging · thermal · cable
Golden sample · BOM · NPI
What the Headline Specs Really Mean
Capacity ≠ usable output energy. Conversion loss matters.
Peak power ≠ sustained power. PCB, cable and thermal limits matter.
PD/PPS is end-to-end. Controller, port, cable and device must match.
Thin + high capacity + high power always involves trade-offs.

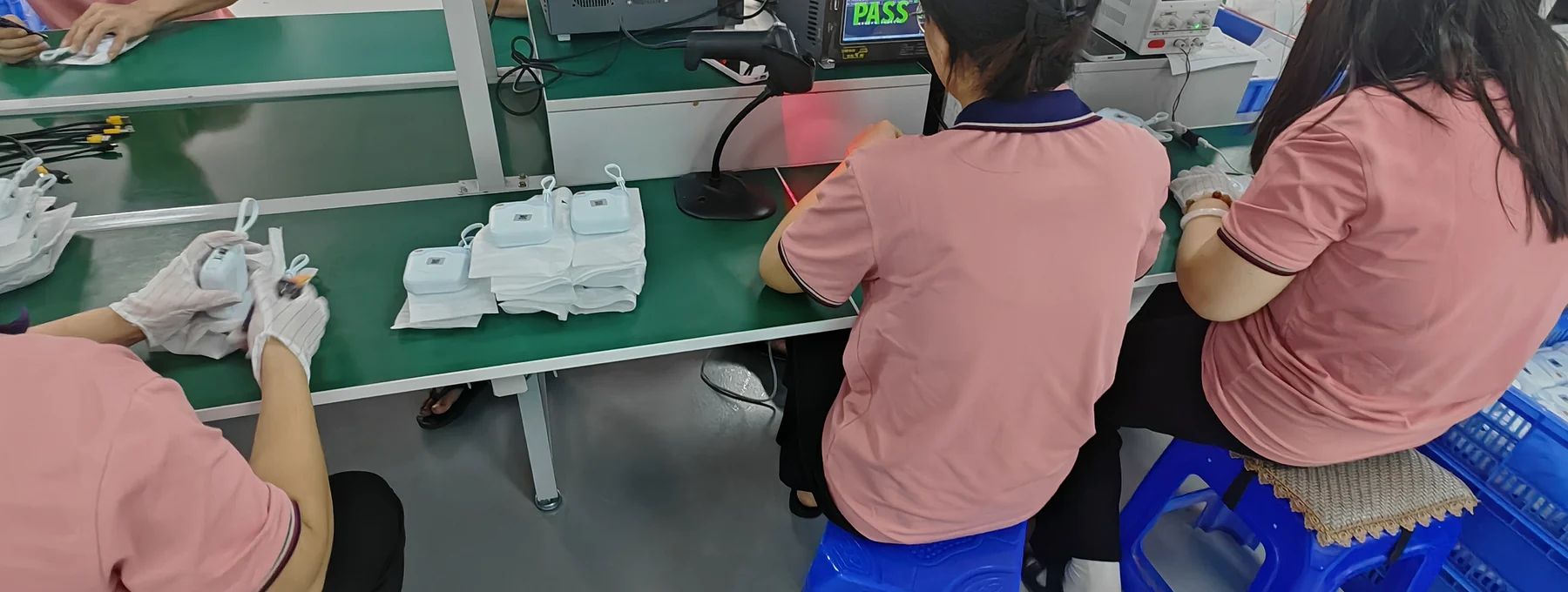

Validation Before Mass Production
Energy: rated capacity, usable output and efficiency.

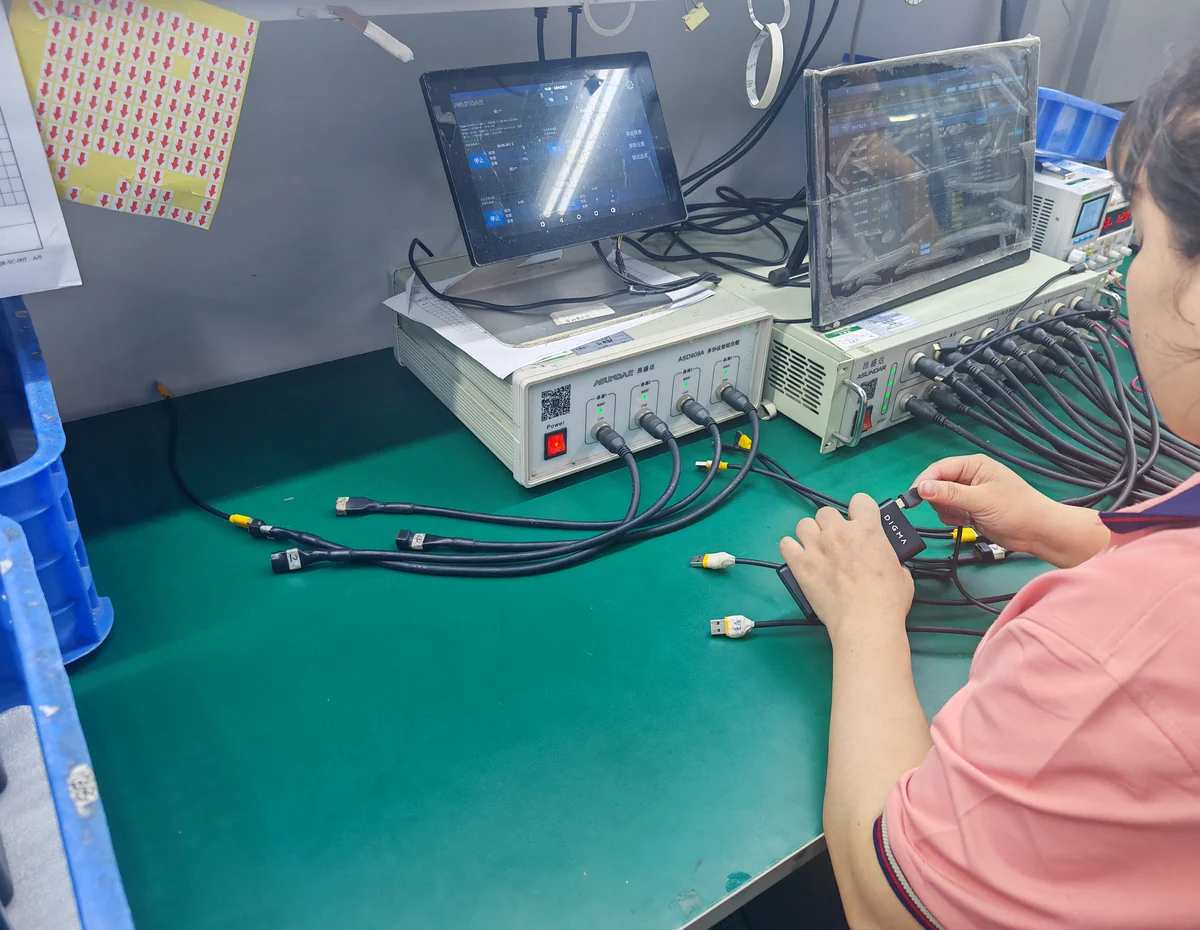

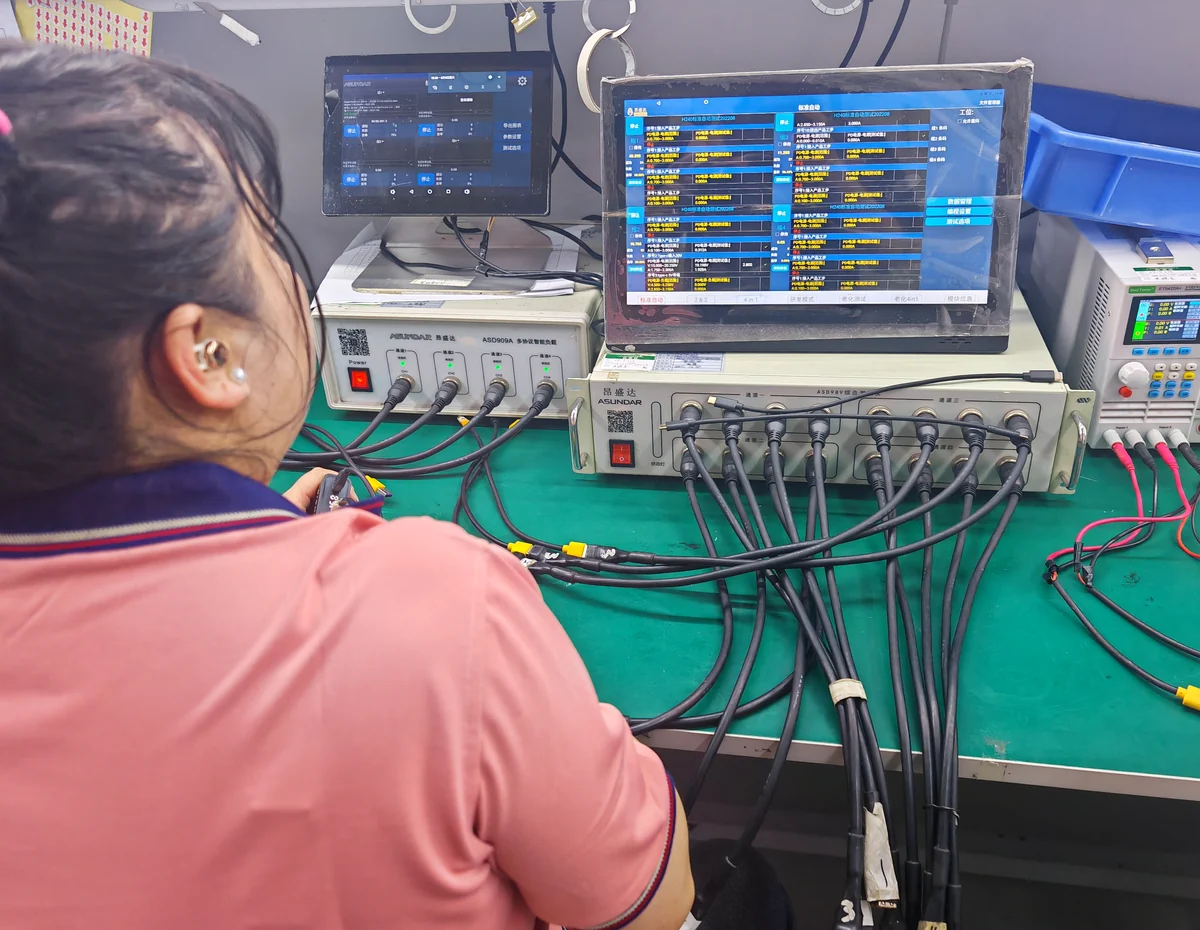

Charging: PD/PPS, real output and simultaneous behavior.
Thermal: PCB, cable, connector and enclosure temperature.
Mechanical: fit, connector retention and cable life.
Release: golden sample, BOM, pilot build and revision control.
Send Technical Requirements
Verify Engineering Claims
Check the design against real products, factory controls and project evidence.
Factory & Quality →
Power Bank Platforms →
Built-In Cable Platforms →
High-Power PD Platforms →
OEM/ODM Cases →
Next: Validation & NPI
Move from approved engineering state to golden sample, reliability, pilot build and mass-production release.
Power Bank Engineering FAQ
Why is usable power-bank capacity lower than rated mAh?
Cell voltage and conversion losses reduce the energy delivered at USB output. Compare Wh, usable energy and efficiency—not mAh alone. Capacity reference →
What determines sustained 20W, 30W or 45W output?
Cell current, DC-DC design, MOSFETs, inductors, PCB copper, connectors, cable loss and thermal limits all matter. High-Power PD platforms →
What does USB PD / PPS support actually mean?
Controller, port, cable and device must support the required profile. PPS also depends on the programmable range and implementation. USB-IF reference →
What should be validated before mass production?
Check capacity, real output, protocols, thermal behavior, cable loss, protection, connector durability, mechanical fit, pilot feedback and the released BOM. Validation & NPI →
